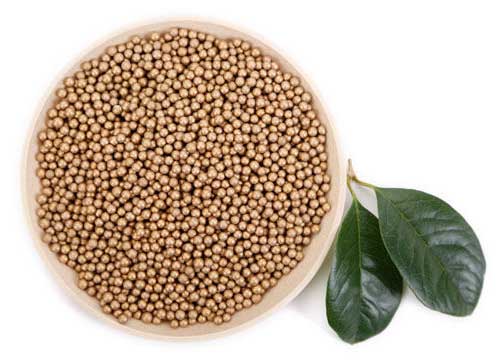

Microporous anti-bacterial ceramic Ball Improved

Application: Water treatment and water filtration materials. Suitable for large water plant, household water purifier filter element, humidifier, air filter, shower, etc.


ZHQGY provides a one-stop solution for water treatment, welcomed the consultation.

Description Parameters Application And Advantages Test Datas SGS Test Report

1. Micro-porous anti-bacterail ceramic balls are composed of zeolite, sepiolite, bentonite, kieselguhr, photocatalysis degradable material and anti-bacterial materials. They are rich of silver ions which are all over micropores' specific area. Silver ions kill bacteria and deter bacterial growth by breaking down organic compounds that comprise bacteria, such as bacterial cell membrane. They can even decompose bacterial remains. Test shows that the inhibition rate achieves to 96% for Escherichia coli and Staphylococcus aureus. Nano titania has excellent performance in absorbing metal ions and releasing negative oxygen.

2. As known to all, Silver, copper and Zinc ions are optimal media killing and resisting bacteria. Microporous ceramic balls has reliable and long lasting performance in killing & resisting bacteria and absorption of micro particles and microorganism.

Color: Gold
Shape: Spherical
Size: 2mm-3mm/4mm-5mm
Standard: Positive And negative Error 0.1mm-1mm
Service Life: 1 Years to 2 Years
Packing: Carton Packaging
Weight: 20Kg/ Case
Delivery Cycle: Spot Supply. Order Quantity And Delivery Time 10 Days

1.Microporous anti-bacterial Water Ceramic Balls   Properties:

Diameter

1mm-8mm

biosorption of heavy metal

>99%

Appearance

golden yellow color spherical balls

absorption of organisms

>99%

Specific Area ( ㎡ /g)

>500

Anti bacterial function

>96%

Bulk Density (g/m3)

0.74-0.78

Specific Gravity (g/m3)

1.3-1.55

2.Microporous balls have optimal anti-bacterial performance in comparison to Silver Ions Balls.

Microporous Ceramic Ball

Silver Ions Ceramic Ball

Appearance

micro poles arranged regularly;
release bubles no substance dissolved

solid structure;
no bubles, no substance dissolved

Specific Area

500~800cm2 per ball(diameter of 5mm)

0.05~0.06cm2 per ball(diameter of 5mm)

Anti bacteria

SGS Test shows Microporous Balls kill 98% E-colis and 96% Staphylococcus aureus

Unkown

Using

Humidifier: 30g~50g/L
Purifier: 1kg of Microporous balls into 100tons of tap water

Humidifier: 80g~100g/L
Purifier: 1kg of Microporous balls into 10tons of tap water

3.Microporous ceramic balls have excellent performance in comparison to activated carbon.

Microporous Ceramic Ball

Activated Carbon

Appearance

micro poles arranged regularly ball;
no residue powder;

black powder or particles

Micro pole structure

Micro pole diameter of 0.27~0.98nm;
could absorb micro particles and microorganism

only mciroporous carbon have limited absorption functions

Material

mixed absorbing material with degradable photo catalyst and rare-earth anti-bacterial material

coal, wood, coconuts shell, nuts shell etc

Functions

1. filter water and absorb harmful substance;
2. anti-bacteria
3. activated water, make micro-clustered water

1. remove foul tast from water
2. remove polluted particles and organisms

Application:
1. Water filter
2. Shower
3. Air purifier
4. Humidifier
5. Pesticide removal

Advantages:
1. Long-lasting anti bacteria function
2. Strengthened anti bacteria function by adding silver, Zn and Cu
3. Micro poles could absorb micro particles and microorganism
4. Remove foul taste and smell from water

Functions:

1 .

Activated water

2.

Killing and resisting colibacillus, candida albicans, golden staphylococcus, pseudomonas aeruginosa etc

3.

100 times enhanced absorbing of heavy metal ions organisms

4.

Micro-clustered water hydrate cells more effectively

5.

Remove smell from water

6.

Remove pesticide residues from fruits and vegetables

7.

Distribute Negative oxygen ion in water

a)  Water Activation Test for Microporous anti-bacterial ceramic water ball shows results as below:

Sample

3min

20min

150h

30g/L

87.04Hz

86.79Hz

69.70Hz

50g/L

81.17Hz

84.45Hz

74.79Hz

80g/L

80.35Hz

79.36Hz

66.62Hz

b)  Anti-bacterial Test for Microporous anti-bacterial ceramic water ball shows results as below:



bacterial colony (cfu)

potable water (cfu)

blank control

126

-

tap water

51

100/ml

microporous anti-bacterial ceramic ball

7

100/ml

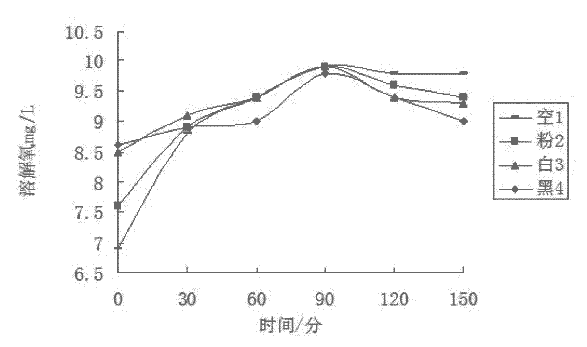

c)  Oxygen dissolving Test for Microporous anti-bacterial ceramic water ball:

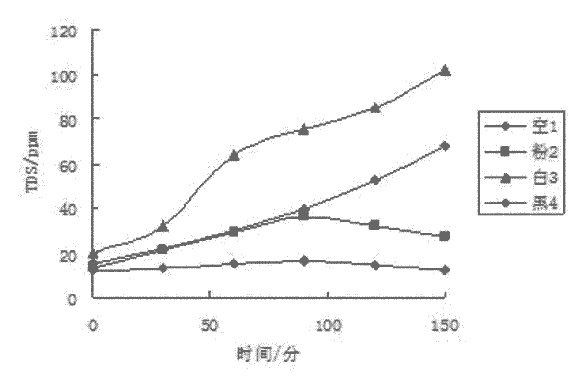

d)  TDS Test:
