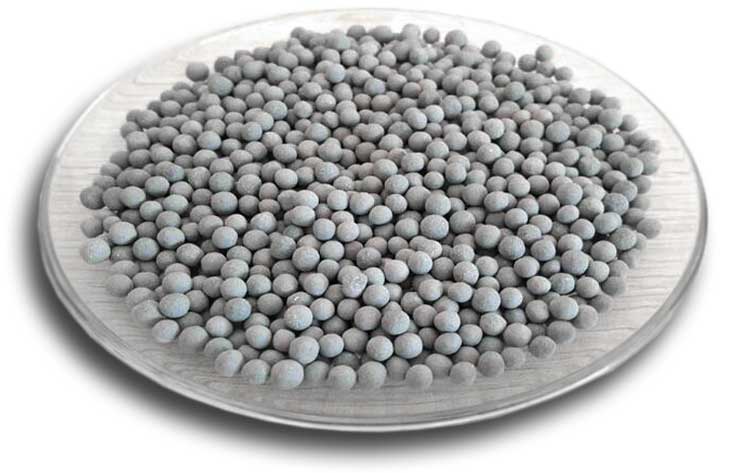

ORP Water Negative Potential Ceramic Ball

Application: Water treatment and water filtration materials. It is used in large water works, household water purifier filter element, water bottles, cups, shower, bath and so on.


ZHQGY provides a one-stop solution for water treatment, welcomed the consultation.

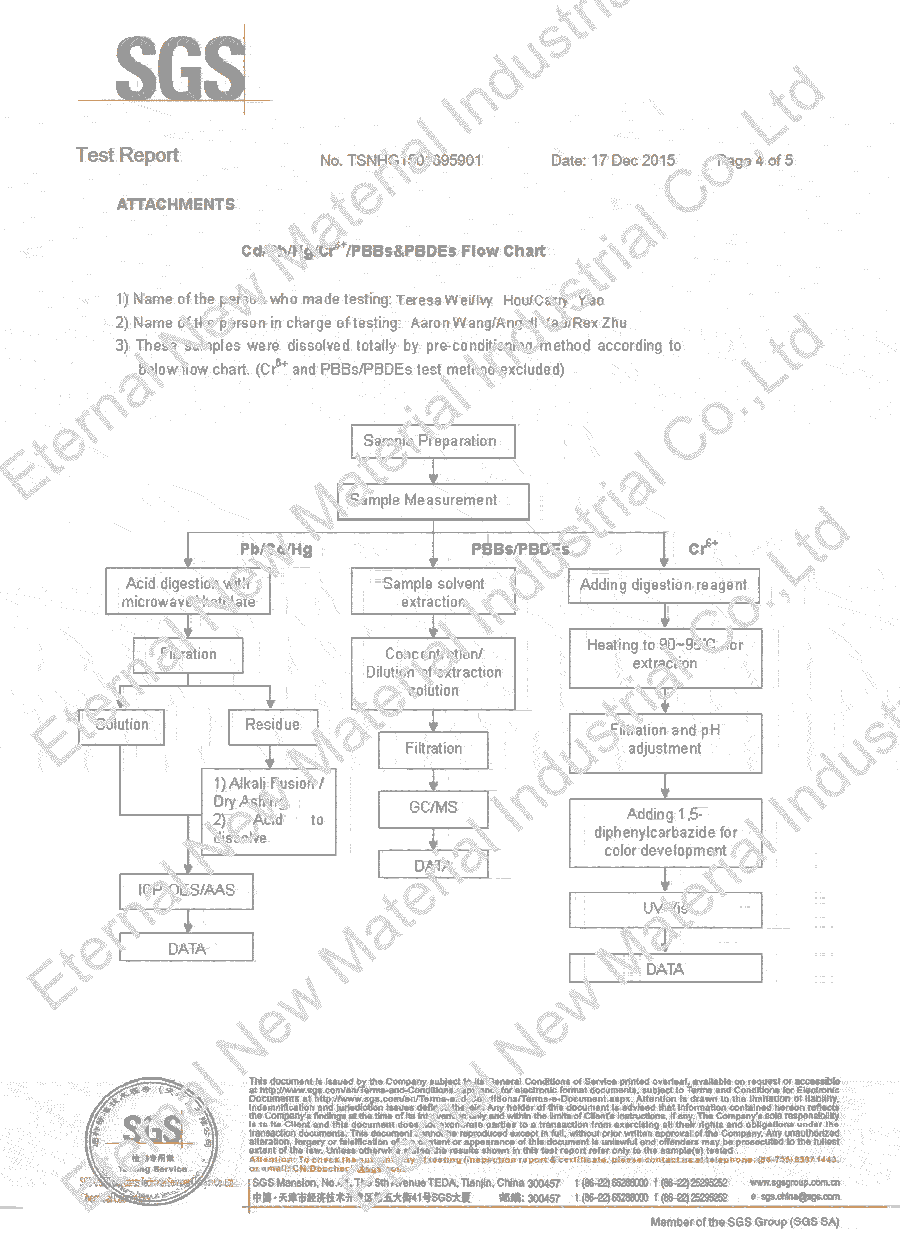

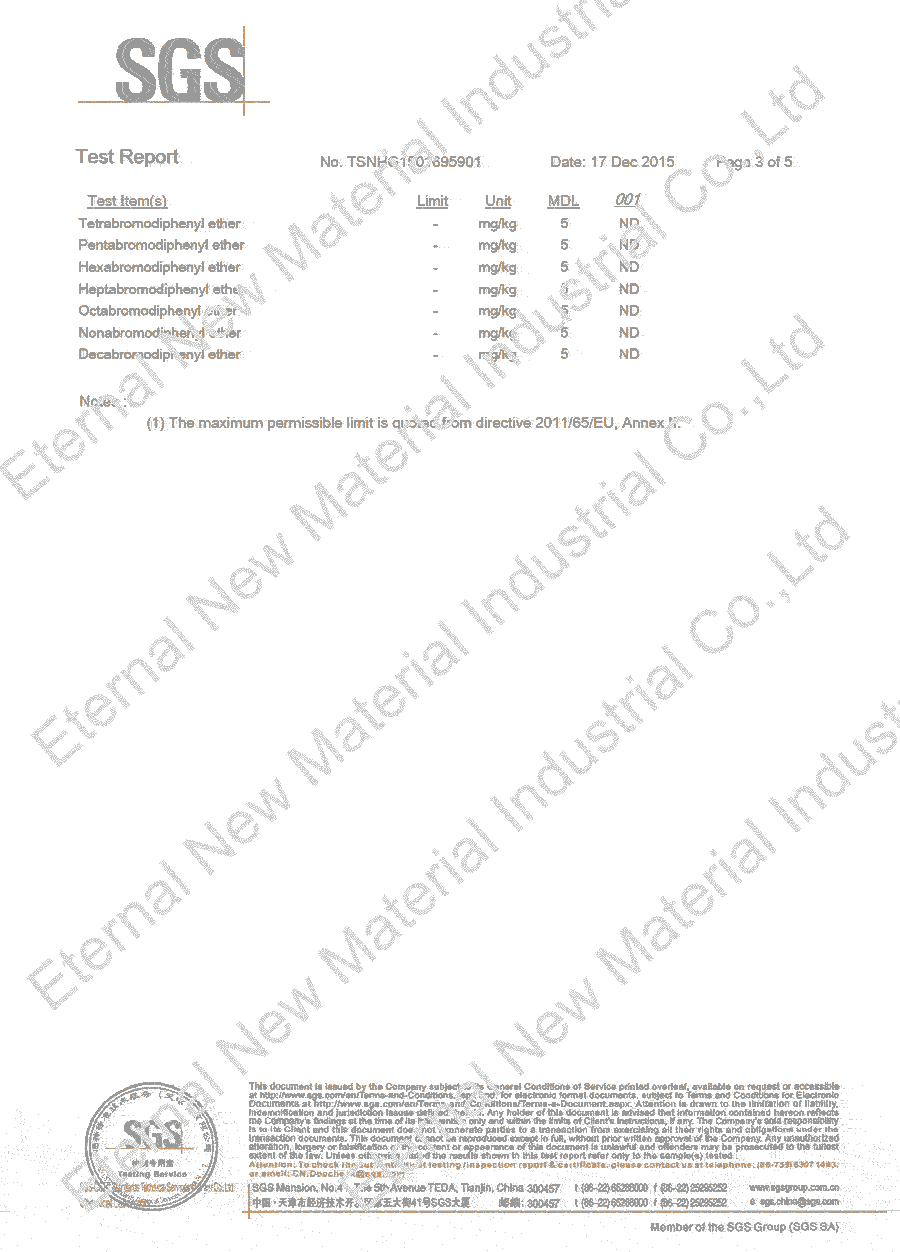

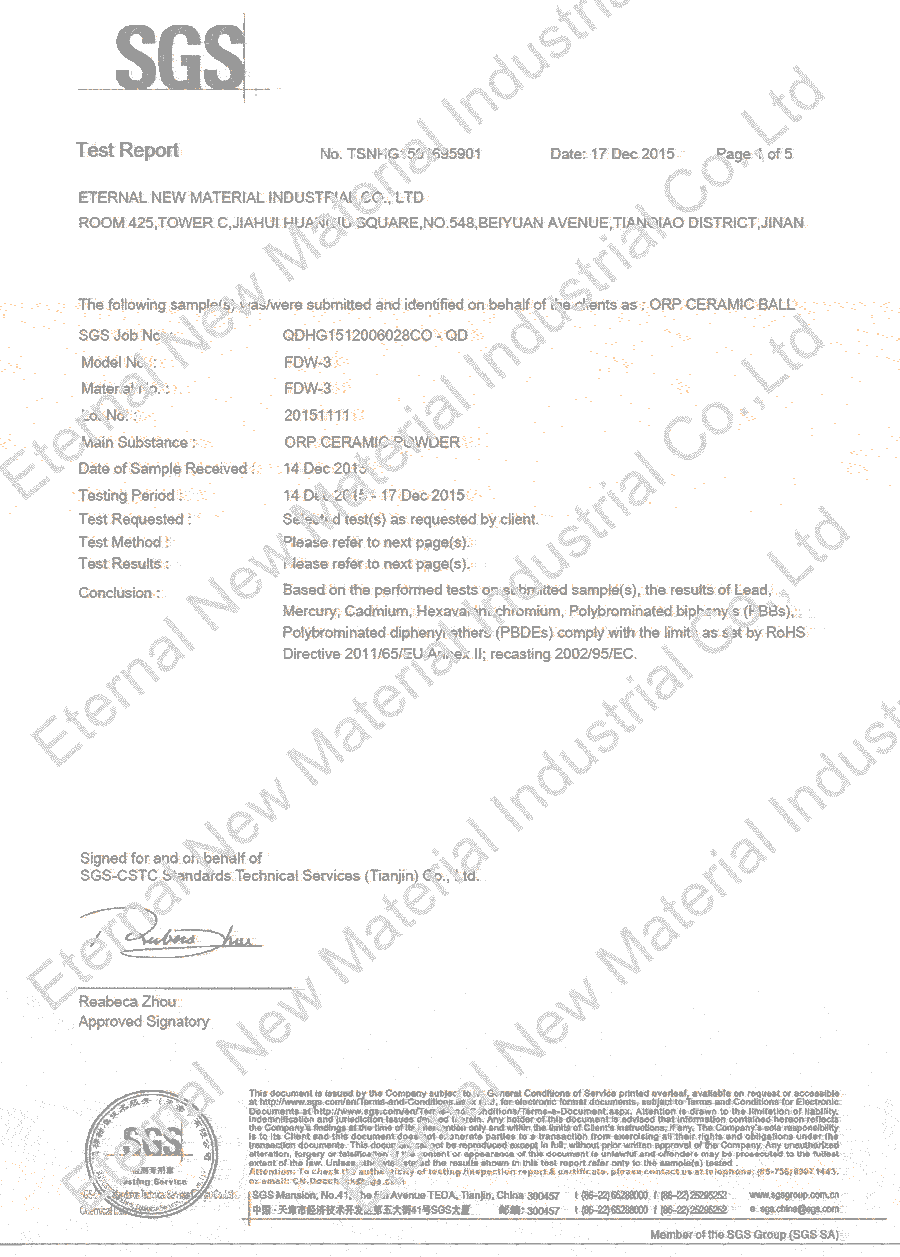

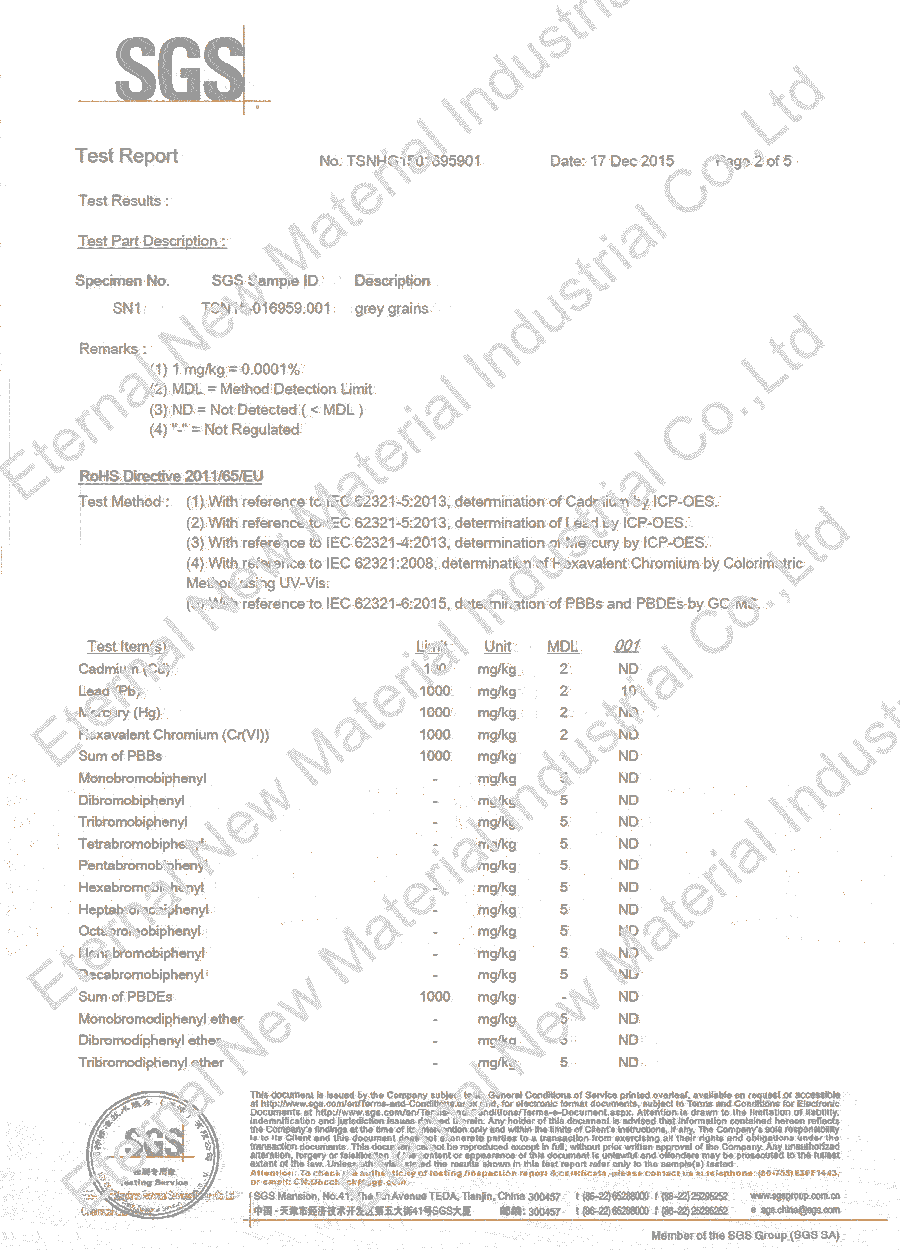

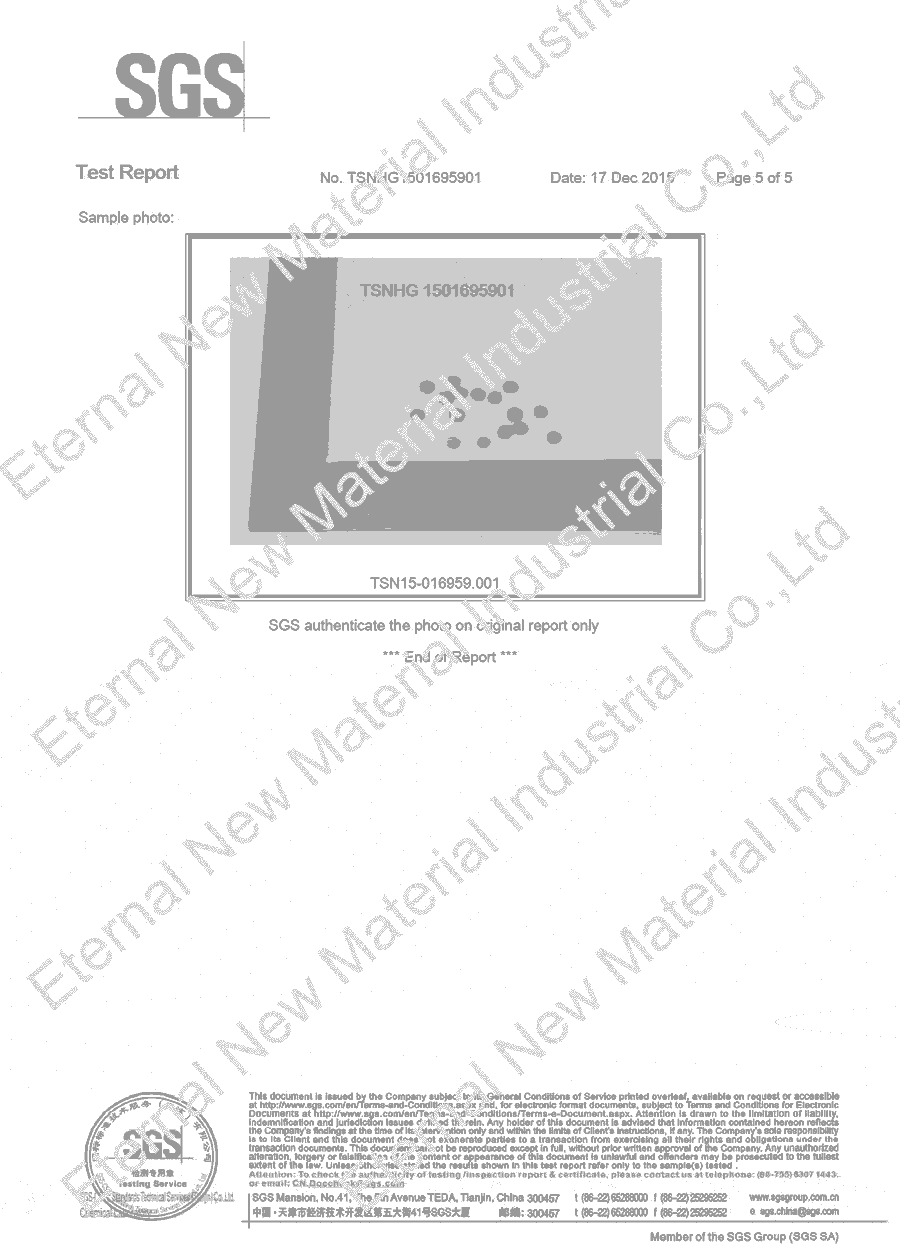

Description Parameters Functions Test Datas SGS Test Report

ORP water ceramic ball could produce a large scale of OH- , which makes ORP of the water largely reducing from +200mv to 0mv ~50mv and restore PH value to 9.5. It produces alkaline water which helps your body maintain a healthy pH level.

Color: Dark Gray
Shape: Spherical
Size: 2mm-3mm/3mm-4mm/4mm-5mm/5mm-6mm/6mm-7mm/7mm-8mm/8mm-9mm/9mm-10mm
Standard: Positive And Negative Error 0.1mm-1mm
Service Life: 6 Months to 1 Years
Packing: Carton Packaging
Weight: 20kg/ Case
Delivery Cycle: The Quantity More Of Order Is 10 Days





Diameter 3~10mm, customized

Apperance

Grey color spherical ball

Material

natrual Maifan stone powder

Specific Area cm2/g

>0.5*10

Density g/cm3

1.35~1.4

Specific Density g/cm3

1.3~1.55

Bulk Density g/m3

0.74~0.78

Inner Porosity Rate %

5%

Bulk Porosity Rate %

39%

Clay Pecentage

<=2%

Compression Strength N

>=50

Flow Rate m/h

10~18

Cadmium(Cd) mg/kg

ND

Lead(Pb) mg/kg

9

Mercery (Hg) mg/kg

ND

Hexavalent Chromium (CrVI)

Negative

SiO2%

0.9

Al2O3 %

0.11

Fe2O3 %

0.27

CaO %

0.46

MnO2 %

0.02

• Produces perfectly ph-balanced alkaline water, helps minimize the fluctuations of your body's pH.

• Produce OH-

• Make Hydrogen water

• Remove chlorine and all kinds of oxidized agents form tap water

• Remove harmful metal ions.

• Turn acidic drinking water into alkali calcium ion water.

• ORP balls could remove micro obstacles with diameter less than 50um. Negative potential ceramic ball could remove Fe2O3 effectively, which is easily detected in aged tap water.

• By increasing the PH value, negative potential ceramic ball could reduce the CaCO3 solubility.

• Provide Zinc and protect water from micro-organism.

• ORP Ceramic balls could also improve the qualities of clean water by adding necessary for proper human development and health minerals, such as Calcium, Magnesium, Sodium, Potassium and others readily found in many natural mineral waters.

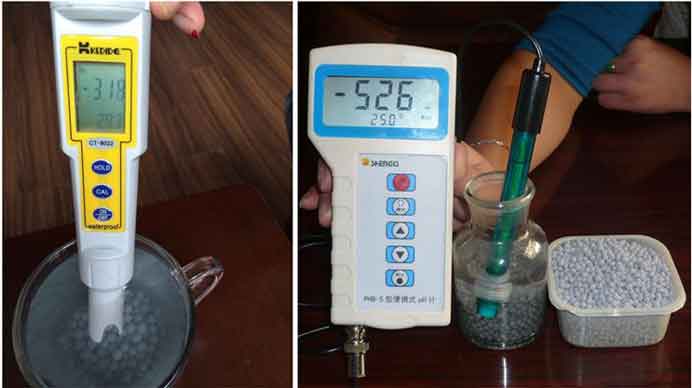

We add 20.69g ORP ceramic balls into water. The test data is as following:

Add 20.69g beads into 500ml water

items

H+(ppb)

PH

ORP(mv)

TDS(mg/l)

3 min

0

7.4

20

5

10mins

690

7.7

-204

15

30mins

730

7.4

-286

33

60mins

827

7.5

-321

63

1080mins

844

10.2

-349

279

Refer to pure water ORP of 93mv


Add 20.80g beads into 750ml water

items

H+(ppb)

PH

ORP

TDS(mg/l)

3 min

0

7.4

84

7

10mins

391

7.3

-68

20

30mins

676

7.4

-242

38

60mins

772

8

-331

58

1080mins

835

10.2

-344

244

Refer to pure water ORP of 93mv



Hydrogen Ceramic Water Test Data 2:

Add 25.10g ORP balls into 500ml water

items

H+(ppb)

PH

ORP(mv)

TDS(mg/l)

3 min

0

9.56

46

18

10mins

300

9.82

37

46

30mins

520

9.99

-36

75

60mins

780

10.12

-82

99

1020mins

1140



-350

339

Refer to pure water ORP of 145mv


Add 25.05g ORP balls into 750ml water

items

H+(ppb)

PH

ORP

TDS(mg/l)

3 min

180

9.71

40

23

10mins

280

9.92

-20

34

30mins

560

9.99

-35

48

60mins

680

10.09

-98

74

1020mins

970



-328

295

Refer to pure water ORP of 145mv
